IP66

horizontal

≥50,000 h

CRI 90

Neon Flex FORM‑H

Neon Flex FORM‑H has been designed for the aesthetic integration of light into furniture and joinery. The 5.2 × 8.8 mm cross-section and the masking collar help conceal the edges of the milling cut, while the densely spaced diodes create a uniform line with no visible LED points.

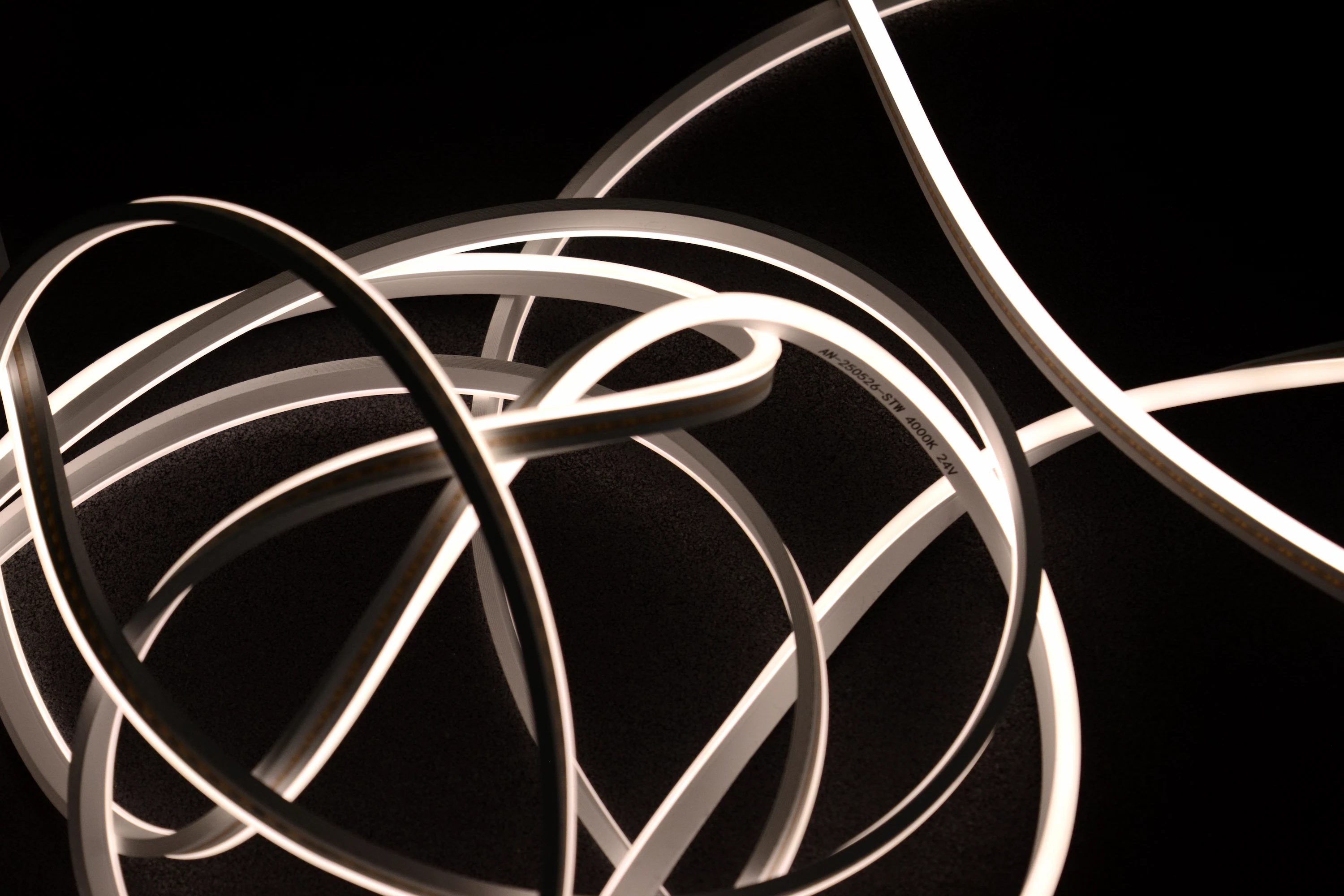

COB LED strip 8 mm 24 V emitting a uniform line of light

IP66

horizontal

≥50,000 h

CRI 90

Neon Flex FORM‑H

Neon Flex FORM‑H has been designed for the aesthetic integration of light into furniture and joinery. The 5.2 × 8.8 mm cross-section and the masking collar help conceal the edges of the milling cut, while the densely spaced diodes create a uniform line with no visible LED points.

IP66

horizontal

≥50,000 h

CRI 90

Neon Flex FORM‑H

Neon Flex FORM‑H has been designed for the aesthetic integration of light into furniture and joinery. The 5.2 × 8.8 mm cross-section and the masking collar help conceal the edges of the milling cut, while the densely spaced diodes create a uniform line with no visible LED points.

IP66

horizontal

≥50,000 h

CRI 90

Neon Flex FORM‑H

Neon Flex FORM‑H has been designed for the aesthetic integration of light into furniture and joinery. The 5.2 × 8.8 mm cross-section and the masking collar help conceal the edges of the milling cut, while the densely spaced diodes create a uniform line with no visible LED points.

Configure your set with Neon Flex FORM-H

Select the appropriate light variant, mounting method, control system, and connection accessories. Once you submit your configuration, an advisor will verify component compatibility and contact you regarding the next steps.

1. Neon Flex

2. Installation

3. Control

4. Connection

5. Contact

Step 1. Choose the light temperature or colour

Select the variant to suit the function and character of the designed space. White colour temperatures are ideal for general and decorative lighting, while colour variants allow for the creation of distinctive light accents.

1. Neon Flex

2. Profile

3. Control

4. Accessories

5. Contact

H-shape

3000 K · 10 W/m

01-001-114-02-66

Luminous flux:

270 lm/m

Voltage:

24 V DC

Dimensions:

5.2 × 8.8 mm

Cutting section:

arbitrary

Bending radius:

3 cm

Reel:

30 m

H-shape

3000 K · 10 W/m

01-001-114-02-66

Luminous flux:

270 lm/m

Voltage:

24 V DC

Dimensions:

5.2 × 8.8 mm

Cutting section:

arbitrary

Bending radius:

3 cm

Reel:

30 m

H-shape

4000 K · 10 W/m

01-001-114-04-66

Luminous flux:

280 lm/m

Voltage:

24 V DC

Dimensions:

5.2 × 8.8 mm

Cutting section:

arbitrary

Bending radius:

3 cm

Reel:

30 m

H-shape

4000 K · 10 W/m

01-001-114-04-66

Luminous flux:

280 lm/m

Voltage:

24 V DC

Dimensions:

5.2 × 8.8 mm

Cutting section:

arbitrary

Bending radius:

3 cm

Reel:

30 m

1. Neon Flex

2. Installation

3. Control

4. Connection

5. Contact

Step 2. Choose the mounting method

Choose a solution tailored to the shape of your installation. The straight profile facilitates in-line mounting, the bent profile allows the Neon Flex to be routed along curves, and the mounting brackets are ideal for point mounting.

Mounting clip

Colour: white

01-011-020-197

Neon Flex:

Base H / Form H

Type:

mounting bracket

Installation:

spotlight

Dimensions:

14.3 × 7 × 4.86 mm

Material:

SUS301 stainless steel

Finish:

powder-coated

Mounting clip

Colour: white

01-011-020-197

Neon Flex:

Base H / Form H

Type:

mounting bracket

Installation:

spotlight

Dimensions:

14.3 × 7 × 4.86 mm

Material:

SUS301 stainless steel

Finish:

powder-coated

Mounting bracket

Installation: recessed

01-011-020-196

Neon Flex:

Base H / Form H

Type:

mounting bracket

Installation:

recessed

Dimensions:

16 × 7.9 × 5.8 mm

Material:

SUS301 stainless steel

Finish:

natural

Mounting bracket

Installation: recessed

01-011-020-196

Neon Flex:

Base H / Form H

Type:

mounting bracket

Installation:

recessed

Dimensions:

16 × 7.9 × 5.8 mm

Material:

SUS301 stainless steel

Finish:

natural

I don't need accessories

1. Neon Flex

2. Installation

3. Control

4. Connection

5. Contact

Step 3. Choose the control method

Select a controller if you want to adjust the brightness, colour, or illumination mode of your Neon Flex. We will only display solutions compatible with the selected product variant.

LED MONO MLR1 controller for adjusting the brightness of 24 V LED strip

FUT035S+

Modes: MONO + CCT

2.4 GHz

Voltage:

12-24 V DC

Max. power:

144 W / 288 W

Output current:

2 × 12 A

Control system:

RF 2.4 GHz

Dimensions:

74.5 × 36 × 17 mm

Colour:

white

FUT035S+

Modes: MONO + CCT

2.4 GHz

Voltage:

12-24 V DC

Max. power:

144 W / 288 W

Output current:

2 × 12 A

Control system:

RF 2.4 GHz

Dimensions:

74.5 × 36 × 17 mm

Colour:

white

I don’t need controls

1. Neon Flex

2. Installation

3. Control

4. Connection

5. Contact

Step 4. Select the connection and end cap

Select the cable entry direction and the components required to connect and terminate the Neon Flex. Accessories will be matched to the selected product variant.

Quick connector for solderless connection of 8 mm COB LED strip

Power supply connector

Mounting: solderless

01-011-020-192

Neon Flex:

Base H / Form H

Type:

connection cable

Connector:

2-pin

Length:

30 cm

Connector dimensions:

10 × 7.9 mm

Material:

transparent PP

Power supply connector

Mounting: solderless

01-011-020-192

Neon Flex:

Base H / Form H

Type:

connection cable

Connector:

2-pin

Length:

30 cm

Connector dimensions:

10 × 7.9 mm

Material:

transparent PP

End cap

Variant: with hole

01-011-020-198

Neon Flex:

Base H / Form H

Type:

end cap

Cut-out:

for cable

Dimensions:

4.3 × 8 × 2 mm

Material:

semi-transparent silicone

Features:

UV-resistant

End cap

Variant: with hole

01-011-020-198

Neon Flex:

Base H / Form H

Type:

end cap

Cut-out:

for cable

Dimensions:

4.3 × 8 × 2 mm

Material:

semi-transparent silicone

Features:

UV-resistant

End cap

Variant: without hole

01-011-020-199

Neon Flex:

Base H / Form H

Type:

end cap

Cut-out:

none

Dimensions:

4.3 × 8 × 2 mm

Material:

semi-transparent silicone

Features:

UV-resistant

End cap

Variant: without hole

01-011-020-199

Neon Flex:

Base H / Form H

Type:

end cap

Cut-out:

none

Dimensions:

4.3 × 8 × 2 mm

Material:

semi-transparent silicone

Features:

UV-resistant

I don't need accessories

1. Neon Flex

2. Installation

3. Control

4. Connection

5. Contact

Step 5. Send the configuration for review

Please provide your contact details so we can verify the compatibility of the system, answer your questions, and prepare further information regarding your order.

Full company name:

Company email address:

Country:

Phone:

Additional notes:

Once submitted, we will review your configuration and contact you by phone. If necessary, we will propose compatible replacements or complementary components for the system.

The data controller is Bergmen Sp. z o.o. We process data for the purposes of order handling and contact (Article 6(1)(b) and (f) of GDPR). You have the right to access, rectify, restrict, and object. Details can be found in the GDPR policy and the General Terms and Conditions (OWS).

Frequently asked questions about Neon Flex FORM‑H

Discover detailed information regarding milling, the masking collar, furniture installation, light parameters, and the FORM-H power supply.

Installation and application

What router bit is required for Neon Flex FORM-H?

How does FORM-H differ from BASE-H?

Can FORM‑H be bent and cut to size?

Technology and lighting effect

What colour temperatures are available?

Are individual LEDs visible in the line of light?

What light quality and consistency does FORM‑H provide?

Power supply and control

Can the entire 30 m reel be powered from one side?

Is it possible to adjust the brightness of FORM‑H?

What durability and resistance does FORM‑H provide?

Frequently asked questions about Neon Flex FORM‑H

Discover detailed information regarding milling, the masking collar, furniture installation, light parameters, and the FORM-H power supply.

Installation and application

What router bit is required for Neon Flex FORM-H?

How does FORM-H differ from BASE-H?

Can FORM‑H be bent and cut to size?

Technology and lighting effect

What colour temperatures are available?

Are individual LEDs visible in the line of light?

What light quality and consistency does FORM‑H provide?

Power supply and control

Can the entire 30 m reel be powered from one side?

Is it possible to adjust the brightness of FORM‑H?

What durability and resistance does FORM‑H provide?

Frequently asked questions about Neon Flex FORM‑H

Discover detailed information regarding milling, the masking collar, furniture installation, light parameters, and the FORM-H power supply.

Installation and application

What router bit is required for Neon Flex FORM-H?

How does FORM-H differ from BASE-H?

Can FORM‑H be bent and cut to size?

Technology and lighting effect

What colour temperatures are available?

Are individual LEDs visible in the line of light?

What light quality and consistency does FORM‑H provide?

Power supply and control

Can the entire 30 m reel be powered from one side?

Is it possible to adjust the brightness of FORM‑H?

What durability and resistance does FORM‑H provide?

Frequently asked questions about Neon Flex FORM‑H

Discover detailed information regarding milling, the masking collar, furniture installation, light parameters, and the FORM-H power supply.

Installation and application

What router bit is required for Neon Flex FORM-H?

How does FORM-H differ from BASE-H?

Can FORM‑H be bent and cut to size?

Technology and lighting effect

What colour temperatures are available?

Are individual LEDs visible in the line of light?

What light quality and consistency does FORM‑H provide?

Power supply and control

Can the entire 30 m reel be powered from one side?

Is it possible to adjust the brightness of FORM‑H?

What durability and resistance does FORM‑H provide?

Products for Neon Flex FORM-H

Complete your FORM-H installation with the appropriate power supply and control system, or explore LED strips designed for other ways of integrating light with furniture.

LED strips

Flexible light sources for profiles, furniture, recesses and architectural details. Available in a wide range of widths, power outputs and colour temperatures.

See LED strips

LED power supplies

24 V LED power supplies, designed for installation with LED strips, modules and other LED light sources.

See power supplies

LED control

Controllers and accessories for convenient management of LED lighting, including brightness control and operation of MONO installations.

See control systems

Products for Neon Flex FORM-H

Complete your FORM-H installation with the appropriate power supply and control system, or explore LED strips designed for other ways of integrating light with furniture.

LED strips

Flexible light sources for profiles, furniture, recesses and architectural details. Available in a wide range of widths, power outputs and colour temperatures.

See LED strips

LED power supplies

24 V LED power supplies, designed for installation with LED strips, modules and other LED light sources.

See power supplies

LED control

Controllers and accessories for convenient management of LED lighting, including brightness control and operation of MONO installations.

See control systems

Products for Neon Flex FORM-H

Complete your FORM-H installation with the appropriate power supply and control system, or explore LED strips designed for other ways of integrating light with furniture.

LED strips

Flexible light sources for profiles, furniture, recesses and architectural details. Available in a wide range of widths, power outputs and colour temperatures.

See LED strips

LED power supplies

24 V LED power supplies, designed for installation with LED strips, modules and other LED light sources.

See power supplies

LED control

Controllers and accessories for convenient management of LED lighting, including brightness control and operation of MONO installations.

See control systems

Products for Neon Flex FORM-H

Complete your FORM-H installation with the appropriate power supply and control system, or explore LED strips designed for other ways of integrating light with furniture.

LED strips

Flexible light sources for profiles, furniture, recesses and architectural details. Available in a wide range of widths, power outputs and colour temperatures.

See LED strips

LED power supplies

24 V LED power supplies, designed for installation with LED strips, modules and other LED light sources.

See power supplies

LED control

Controllers and accessories for convenient management of LED lighting, including brightness control and operation of MONO installations.

See control systems

Neon Flex FORM‑H

Neon Flex FORM‑H

Neon Flex FORM‑H

Neon Flex FORM‑H

Configure Neon Flex FORM‑H

Configure Neon Flex FORM‑H

Configure Neon Flex FORM‑H

Configure Neon Flex FORM‑H

Neon Flex FORM‑H for aesthetic furniture lighting

Aesthetically concealed routing edges

Neon Flex FORM‑H for aesthetic furniture lighting

Aesthetically concealed routing edges

Neon Flex FORM‑H for aesthetic furniture lighting

Aesthetically concealed routing edges

Neon Flex FORM‑H for aesthetic furniture lighting

Aesthetically concealed routing edges

Configure your set with Neon Flex FORM-H

Step 1. Choose the light temperature or colour

H-shape

H-shape

H-shape

H-shape

Step 2. Choose the mounting method

Mounting clip

Mounting clip

Mounting bracket

Mounting bracket

I don't need accessories

I don't need accessories

Step 3. Choose the control method

FUT035S+

FUT035S+

I don’t need controls

I don’t need controls

Step 4. Select the connection and end cap

Power supply connector

Power supply connector

End cap

End cap

End cap

End cap

I don't need accessories

I don't need accessories

Step 5. Send the configuration for review

Configure your set with Neon Flex FORM-H

Step 1. Choose the light temperature or colour

H-shape

H-shape

Step 2. Choose the mounting method

Mounting clip

Mounting bracket

I don't need accessories

Step 3. Choose the control method

FUT035S+

I don’t need controls

Step 4. Select the connection and end cap

Power supply connector

End cap

End cap

I don't need accessories

Step 5. Send the configuration for review

Configure your set with Neon Flex FORM-H

Step 1. Choose the light temperature or colour

H-shape

H-shape

Step 2. Choose the mounting method

Mounting clip

Mounting bracket

I don't need accessories

Step 3. Choose the control method

FUT035S+

I don’t need controls

Step 4. Select the connection and end cap

Power supply connector

End cap

End cap

I don't need accessories

Step 5. Send the configuration for review

Frequently asked questions about Neon Flex FORM‑H

Installation and application
